HC6205-C-2BRS-L038-C3>V
Deep groove ball bearing
Deep groove ball bearing HC62..-C-2BRS, Hybrid bearing, single row, Generation C, shields, steel sheet metal cage
Main Dimensions & Performance Data
| d | 25 mm | Bore diameter |
| D | 52 mm | Outside diameter |
| B | 15 mm | Width |
| Cr | 15,900 N | Basic dynamic load rating, radial |
| C0r | 7,500 N | Basic static load rating, radial |
| Cur | 385 N | Fatigue load limit, radial |
| nG | 22,000 1/min | Limiting speed |
| nϑr | 16,000 1/min | Reference speed |
| ≈m | 0.115 kg | Weight |
Mounting dimensions
| da min | 30.6 mm | Minimum diameter shaft shoulder |
| Da max | 46.4 mm | Maximum diameter of housing shoulder |
| ra max | 1 mm | Maximum fillet radius |
Dimensions
| rmin | 1 mm | Minimum chamfer dimension |
| D1 | 44.06 mm | Shoulder diameter outer ring |
| D2 | 46.01 mm | Caliber diameter outer ring |
| d1 | 32.94 mm | Shoulder diameter inner ring |
| d2 | 31.61 mm | Caliber diameter inner ring |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 100 °C | Operating temperature max. |
Calculation factors
| f0 | 13.2 | Calculation factor |
Downloads:
Your current product variant
| Version code | >V | Not marked on bearing |
| Material Bearing | HC | Hybrid bearing, rolling elements ceramic, bearing rings made of steel |
| Changed internal design | C | GenerationC |
| Sealing | 2BRS | Non-contact seal on both sides |
| Cage | JN | Steel sheet metal |
| Tolerance class | P6 | Class6 (P6), better than PN |
| Dimensional / heat stabilization | SN | Rings dimensional stabilized up to 120° |
| Lubricant | L038 | Grease (L038/customer specific) |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Bore type | Z | Cylindrical |
Characteristics
All
English
2024-05-15 | Technische Produktinformation | TPI 206 | Englisch
Current-Insulating Bearings
2017-05-13 | Technische Produktinformation | TPI 165 | Englisch
Deep Groove Ball Bearings Generation C
2017-08-15 | Katalog | MH1 Dismounting Hydraulic | Englisch
Dismounting of rolling bearings - Hydraulic dismounting
2017-08-15 | Katalog | MH1 Dismounting Mechanical | Englisch
Dismounting of rolling bearings - Mechanical dismounting
2017-01-13 | Broschüre | | Englisch
FAG Generation C Deep Groove Ball Bearings

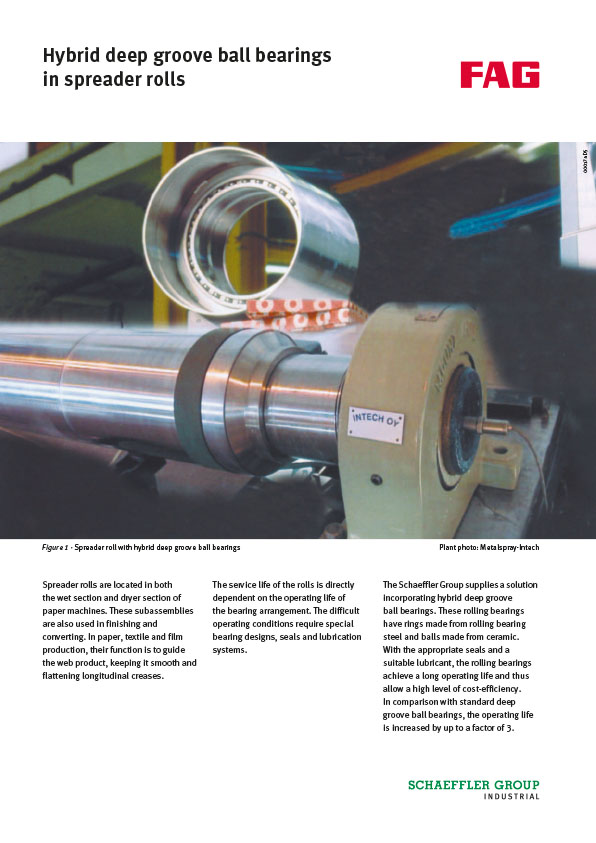

2011-02-17 | Datenblatt | RFB 17 | Englisch
